• Brand:- Mechanic
• Colour:- Metallic Brown
• Material:- Polyimide, Silicone
• Number of Items    ‎1
• Recommended Uses For Product:-‎Sublimation
• Size:-3mm
• Tensile Strength:- ‎75 PoundsItem Weight:- ‎10 g
• Package Dimensions:- ‎13.2 x 9.4 x 1.7cm

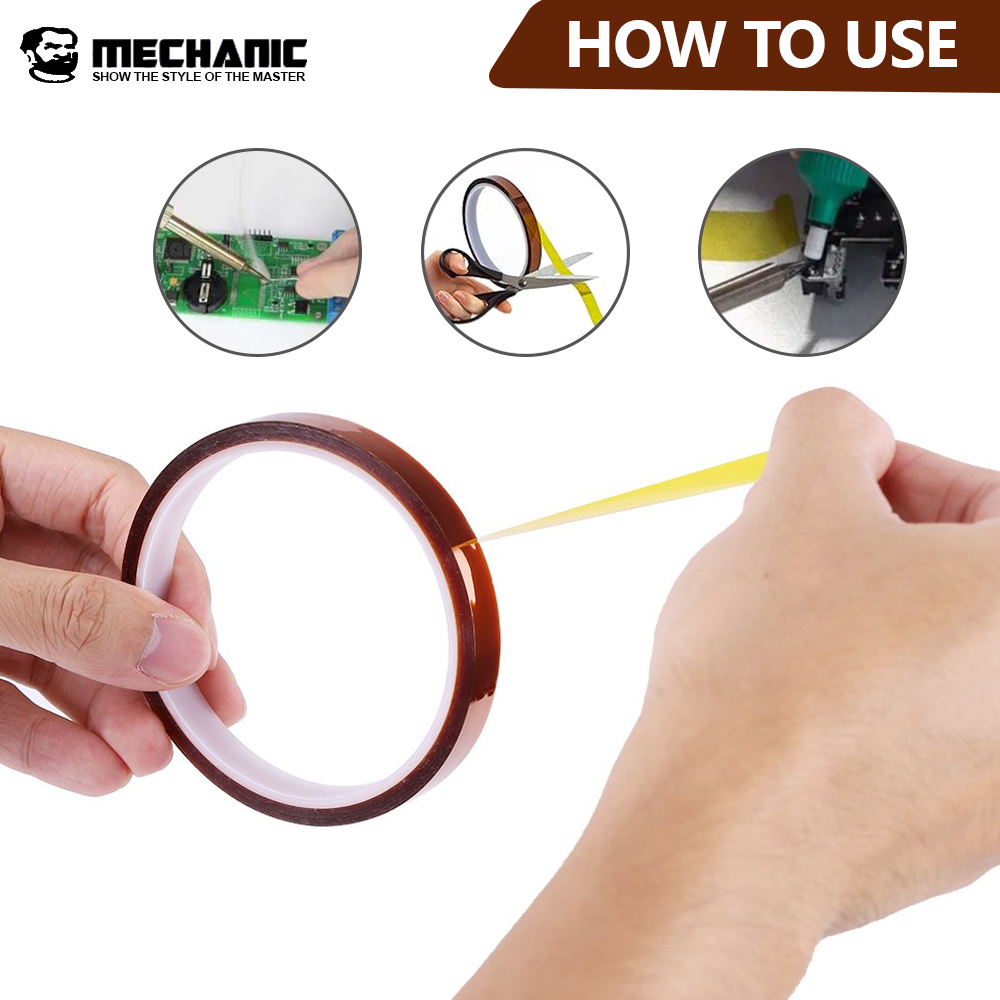

Mechanic 3mm High Temperature Resistant Tape, Heat Resistance Polyimide Tape High Thermal Sublimation Tape Sticker Ultra Strong Adhesive, 30-meter long, heat-resistant up to 280°CHigh Temperature Resistance: The mechanical Heat Resistance Polyimide High Thermal Tape has a heat resistance of up to 280 °C. The Tape works well in protecting electronic products, Frequency Conversion, Sublimation, electric motor, soldering, as well as painting, packing, fixing, 3D printing, Splicing Wires, printing PCB circuit board, and Semiconductor manufacturing. Multi-size Tape available: The Mechanic 3mm High Temperature Resistant Tape is available in 6 different widths: 3- 6 – 10 –12 – 20 – 25 mm or a Multi-Pack. Each roll is 30 meters in Length. High-Quality Protection: Includes Antistatic Tweezer. The ESD Heat Resistance Polyimide High Thermal Tape is made of polyimide film with silicone adhesive. Therefore, the Superior performance of the heat-resistant and the strong silicone adhesive makes this heat-transfer tape easy to stick and leaves no residue on the surface after peeling off.

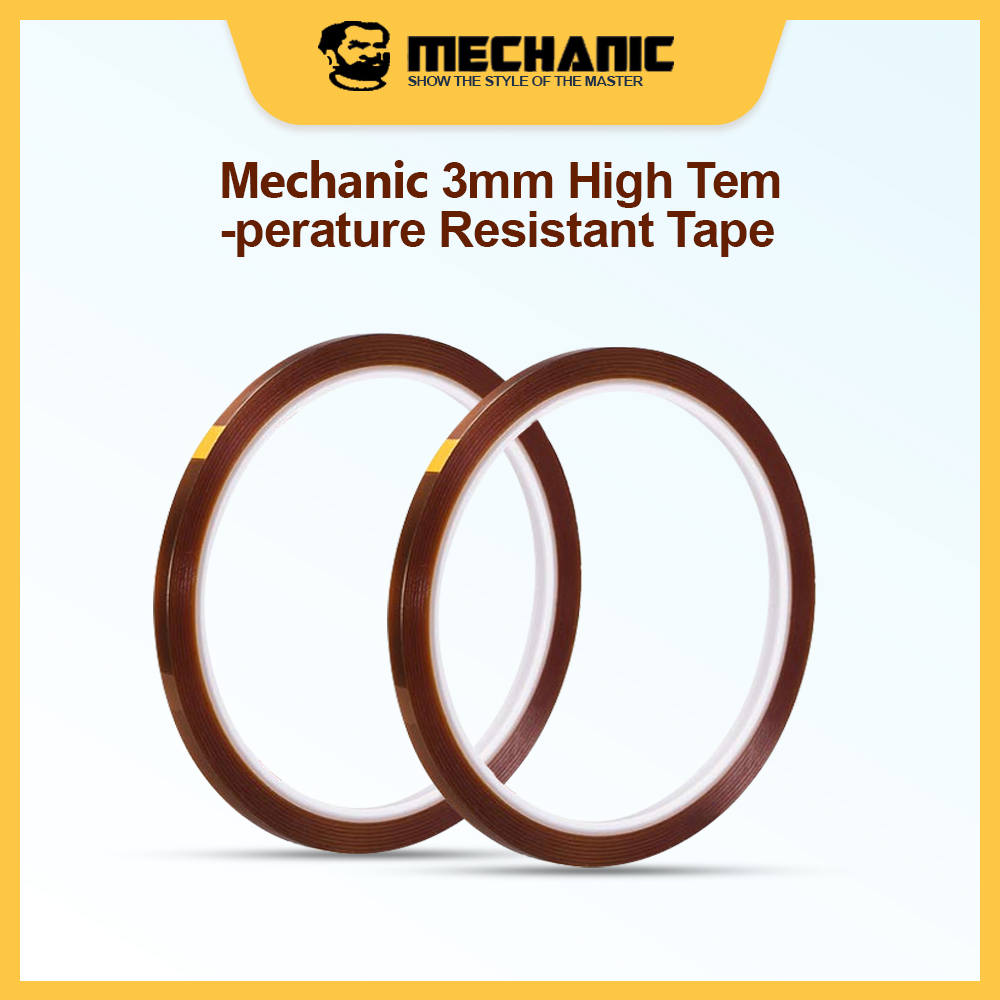

Mechanic 3mm High Temperature Resistant Tape

• High-Quality Product by Mechanic: Each part is tested before shipment. ProTape pro 950 polyimide film tape.
• It is ideally suited for continuous high-temperature operating conditions.
• It is used as a ground, barrier, and phase insulation in high-performance toroidal coils and high-frequency motors.
• It can be used for end-turn bundling and connection insulation in small motors.
• It is also used for cross-over insulation and out wraps on bobbin-wound and form-wound Coils for large rotating machines to bundle conductors and reinforce insulation, and it can also be used as wave solder masking of printed circuit boards.
• It combines a thin, conformable backing with outstanding puncture, tear, and abrasion resistance at high-temperature levels.
• Thermosetting adhesive provides solvent resistance and outstanding high-temperature adhesion.
• Features include good adhesion, good tensile strength, low-temperature application, short-term, high-temperature resistance, clean removal, good chemical and solvent resistance, UV resistance, easy unwinding, good abrasion and moisture resistance, and waterproof backing.
• Applications include surface protection, powder-coated surfaces, splicing, coil wrap banding, and circuit board protection. Polyimide film/Kapton backing.
• 1-millimeter backing thickness (D-3652). 2.5-millimeters total tape thickness (D-3652). 24 pounds per inch tensile strength (D-882-91). 50 Percent elongation (D-882-91).

• 20 ounces per inch adhesion to steel (D-3330).
• 7500 Volts dielectric strength (D-149-97). 500-degree F oven residue testing temperature resistance.
• 350 degrees F/180 degrees C insulation class, centigrade.
